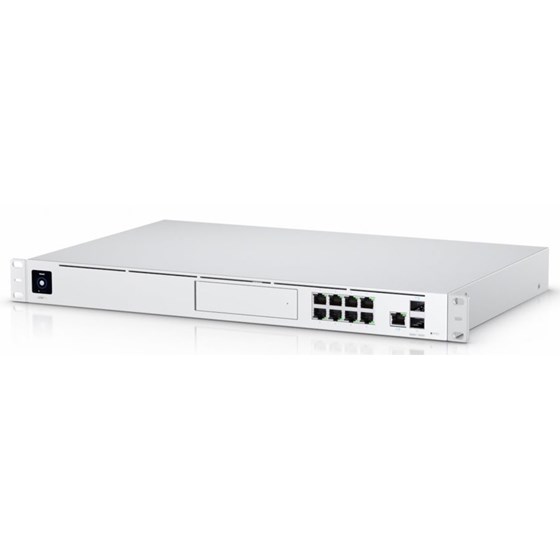

Ubiquiti UDM-Pro - UniFi Dream Machine Pro

• UniFi Dream Machine Pro from Ubiquiti is an all-in-one network solution for small or medium-sized businesses. It is a very powerful 1U device to 19" rack and combines the following features: • Manageable 8-port Gigabit switch with one SFP/SFP+ port and VLAN support • Multiple WAN capability via Gigabit Ethernet or SFP/SFP+ port • UniFi Security Gateway - offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS). • UniFi Controller - The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. • UniFi Video - the 3.5" HDD slot is used for storing camera recordings • VPN server

• Connectors and Interfaces
• WAN Ports:1
• WAN speed:(1) 10/100/1000Mbps
• Number of HDD slots:1
• Multiple WAN:Yes
• LAN speed:(8) 10/100/1000Mbps
• Optical interfaces:(2) 1G/10Gbps
• Other features:Bluetooth
• Power
• Power type:Mains power (230V), UniFi SmartPower RPS
• Redundant power supply:Yes
• Max. power consumption [W]:33
• Power via connector/terminal:230V AC
• Physical characteristics
• Design:Rackmount
• Fans:Yes
• Chassis design:Metal
• Operating temperature [°C]:-10 up to 40
• Weight [g]:5
• Width [mm]:442 / Height [mm]:44 / Depth [mm]:286
• Hardware
• CPU:ARM Cortex-A57
• CPU frequency [MHz]:1700
• CPU cores:4
• RAM [MB]:4096
• Software
• Supported VPN:PPTP, L2TP, IPSec, OpenVPN
• Pre-installed controller:UniFi Network, UniFi Protect
• Management:Web management, UniFi Network
• IPv6 support:Yes
