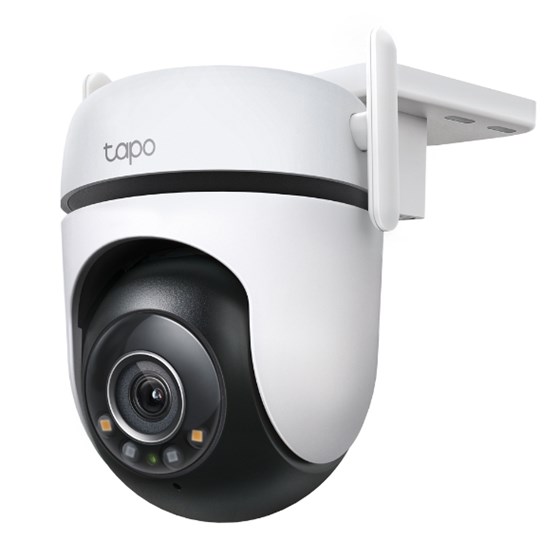

TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera

• 2K QHD Live View - Adopting a 2560 × 1440 resolution, Tapo C520WS provides 1.7 × more pixels and delivers sharper images than 1080p. • Starlight Color Night Vision - Adopting an F1.6 large-aperture lens and starlight sensor, Tapo C520WS captures more light and has higher photosensitivity, thus rendering brighter colors under lower light conditions than full-color night vision cameras with an F2.2 lens and ordinary sensor. • 360° Visual Coverage - Provides 360° horizontal & 130° vertical viewing range, enabling you to focus on more vital areas and eliminate blind spots. • Free Person/Pet/Vehicle Detection - Smart AI identifies people, pets, and vehicles, notifying users as needed. • Customizable Sound and Light Alarm - Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away. • Secure Local & Cloud Storage - Save recorded videos to a microSD card† or by using Tapo Care** cloud services. • IP66 Weatherproof - Offers excellent waterproof and dustproof performance for outdoor scenarios. • Wired/Wireless Networking - Connect your camera to the network through WiFi or Ethernet for more flexible installation.

• KAMERA
• Image Sensor: 1/3” Progressive Scan CMOS Starlight Sensor
• Lens
• Focal Length: 3.2 mm
• Aperture: F1.6
• Field of View: 112° (Diagonal), 95°(Horizontal), 53°(Vertical)
• Motion Range:
• Pan Mechanical Range: 340° (360° Pan Coverage)
• Tilt Mechanical Range: 60° (130° Tilt Coverage)
• Night Vision:
• 850 nm IR LED (98 ft / 29.9 m)
• Full-Color Night Vision
• Lighting: 2× Built-in Spotlights
• Interface & Button :
• 1× Ethernet Port
• 1× RESET Button
• 1× MicroSD Card Slot (Up to 512GB)
• VIDEO & AUDIO
• Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
• Frame Rate: 15/20/25/30 fps (Default 15 fps)
• Video Compression: H.264
• Live View: Yes
• Image Enhancement: 3D DNR
• BLC
• Audio Input & Output: Built-in Microphone and Speaker
• Audio Communication: Two-Way Audio with Noise Cancellation
• Siren Volume: 93 dB (Level measured at 4-inch/10-cm distance)
• STORAGE
• Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
• Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
• DETECTION and NOTIFICATIONS AI Detection:
• Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Line-Crossing Detection
• Tamper Detection
• Activity Zones: Yes
• Output Notification : System Notification
• System Notification with Snapshot (Tapo Care Services)
• NETWORK
• Network Connectivity: Connect via Wi-Fi or Ethernet
• Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
• Ethernet Port: 1× 10/100 Mbps RJ45 Port on Camera
• RTSP: Yes
• ONVIF: Yes
• SECURITY
• On-Device Machine Learning
• 128-bit AES Encryption with SSL/TLS
• WPA/WPA2-PSK
• POWER
• Power Source: 9V DC Power Adapter
• Input Voltage: 100-240 V, 50/60 Hz
• Output Voltage: 9 V, 0.85 A (DC Power)
• GENERAL
• Smart Integration: Google Assistant, Amazon Alexa
• Weather Resistance: IP66
• System Requirements : Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
• Mounting Options:
• Ceiling-Mounted
• Wall-Mounted
• Pole-Mounted (Pole-Mounting loops required but not included)
• Operating Temperature: -30?~60?
• Storage Temperature: -40?~60?
• Operating Humidity: 10%~90% RH, Non-condensing
• Storage Humidity: 0~90% RH, Non-condensing
• Dimensions: 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
• Package Contents:
• Tapo C520WS Camera ×1
• Power Adapter ×1
• Mounting Anchors ×4
• Mounting Screws ×4
• Bracket Screws ×2
• Mounting Template ×1
• Mounting Bracket ×1
• Waterproof Seal ×1
• Waterproof Cable Attachments ×1
• Quick Start Guide
