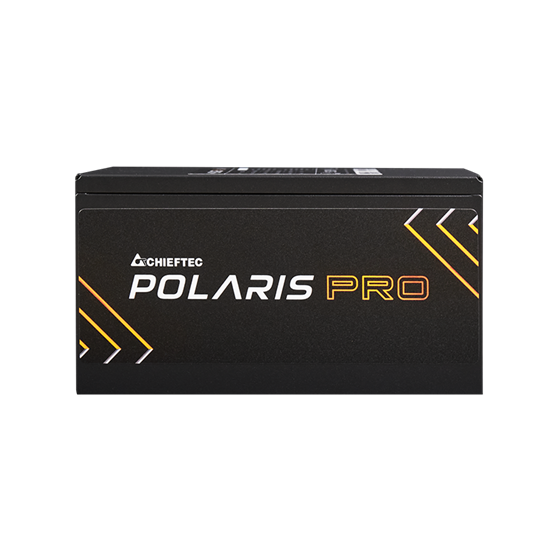

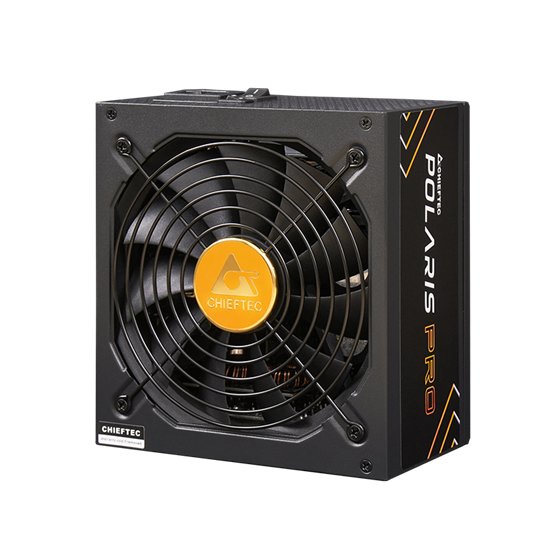

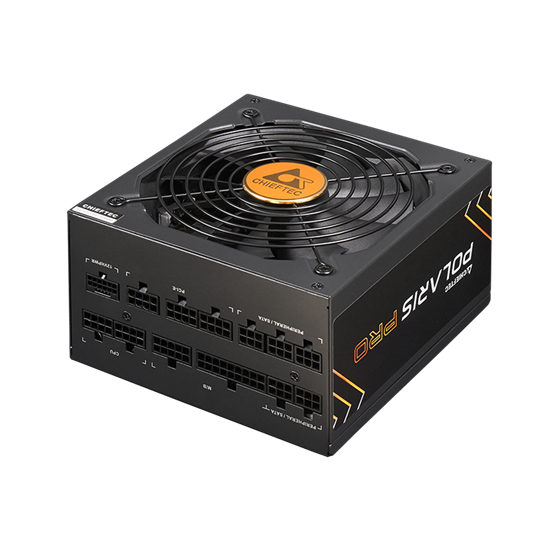

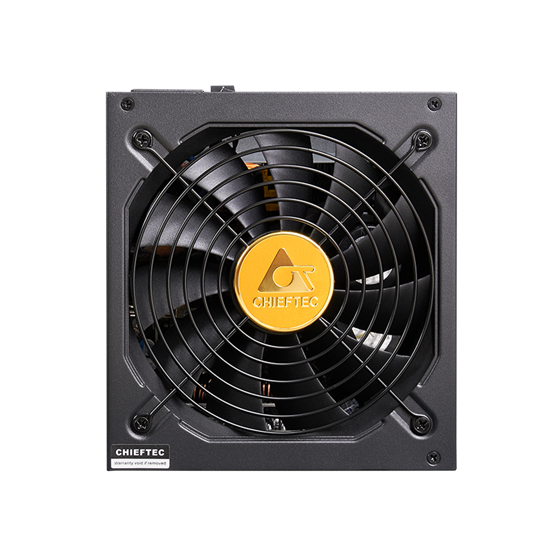

Napajanje Chieftec Polaris Pro PPX-1300FC-A3, 1300W, 80 PLUS PLATINUM, Modular, 140mm

• The CHIEFTEC Polaris Pro Series features advanced thermal control with the Zero RPM mode, enabling the optimal balance between silence at low power consumption and ideal cooling, with 80 PLUS® PLATINUM certified efficiency. • Polaris Pro Series is designed for Intel’s state-of-the-art ATX 3.0 standard with native PCIe GEN5 connector. • The Polaris Pro Series is built with 100% high-end Japanese capacitors to achieve unprecedented tight voltage regulation and lower ripple and noise to maximize your system performance and excellent durability. • Fully modular cable management ensures a clean and convenient build inside any system.

• TECHNICAL DATA
• Model: Polaris Pro 1300W
• Weight (without/with package): 3.13 kg / 3.49 kg
• AC Input: 100-240V / 15.0A - 8A
• Frequency: 50 - 60Hz
• +5V: 24A
• +3,3V: 24A
• +5V & +3,3V combined: 120W
• +12V1: 108.3A
• +12V2 --
• +12V1, +12V2 combined: 1300W
• P.F. : >0,9
• - 12V: 0,3A / 3,6W
• +5VSB: 3,0A / 15W
• Maximum Power: 1300W
• Connectors:
• 20+4 PIN ATX: 1
• 8 PIN EPS (4+4): 2
• 8 PIN PCIe (6+2): 6
• 16 PIN PCIe GEN5: 1
• SATA: 12
• MOLEX: 4
• FLOPPY(adaptor): 1
• Cable length (mm):
• 20+4 PIN ATX: 600
• 8 PIN EPS (4+4): 2x 700
• 8 PIN PCIe (6+2): 3 x 500/150
• 16 PIN PCIe GEN5: 600
• SATA: 3 x 550/100/100/100
• MOLEX: 550/100/100/100
• FLOPPY: 150
• Features:
• ATX12V Version: ATX 12V 3.0
• Efficiency: 80+Platinum
• Dimension (DxWxH): 160 mm x 150 mm x 86 mm
• PFC: Active PFC
• Fan: 135mm FDB fan
• Security:
• AFC (Automatic Fan speed Control)
• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• SIP (Surge & Inrush Protection)
• UVP (Under Voltage Protection)
• Warranty: 60 Months
