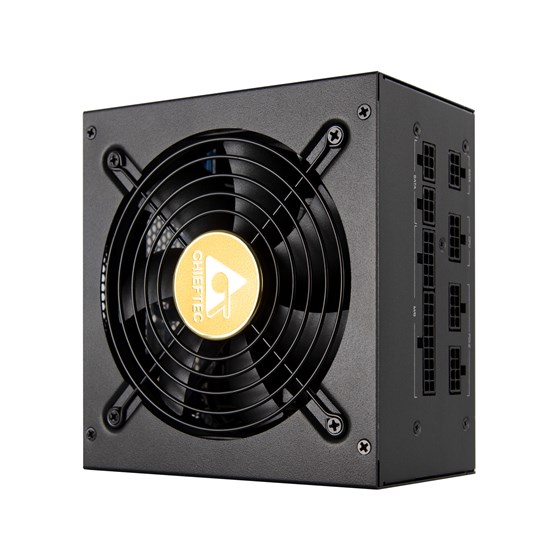

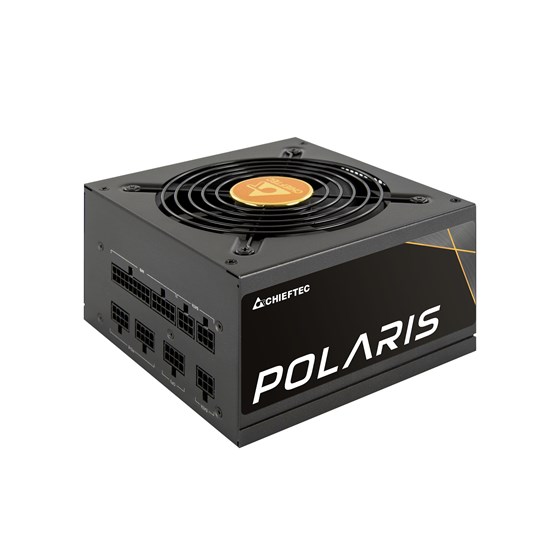

Napajanje Chieftec Polaris PPS-1250FC, 1250W, 80 PLUS GOLD, Modular, 140mm vent

• The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. • Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size. • With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. • Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.

• TECHNICAL DATA
• Model: Polaris 1250W
• Weight (without/with package): 2.7kg / 3.5kg
• AC Input: 100-240V / 15.0A - 8A
• Frequency: 50 - 60Hz
• +5V: 22A
• +3,3V: 22A
• +5V & +3,3V combined: 120W
• +12V1: 104.1A
• +12V2 --
• +12V1, +12V2 combined: 1250W
• P.F. : >0,9
• - 12V: 0,3A / 3,6W
• +5VSB: 3,0A / 15W
• Maximum Power: 1250W
• Connectors:
• 20+4 PIN ATX: 1
• 8 PIN EPS (4+4): 2
• 8 PIN PCIe (6+2): 6
• SATA: 12
• MOLEX: 4
• Cable length (mm):
• 20+4 PIN ATX: 650
• 8 PIN EPS (4+4): 2x 650
• 8 PIN PCIe (6+2): 3 x 600/100
• SATA: 3 x 550/100/100/100
• MOLEX/FLOPPY: 550/100/100/100
• Features:
• ATX12V Version: ATX 12V 2.53
• Efficiency: 80+Gold
• Dimension (DxWxH): 1160 mm x 150 mm x 86 mm
• PFC: Active PFC
• Fan: 135mm FDB fan
• Security:
• AFC (Automatic Fan speed Control)
• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• SIP (Surge & Inrush Protection)
• UVP (Under Voltage Protection)
• Warranty: 24 Months
