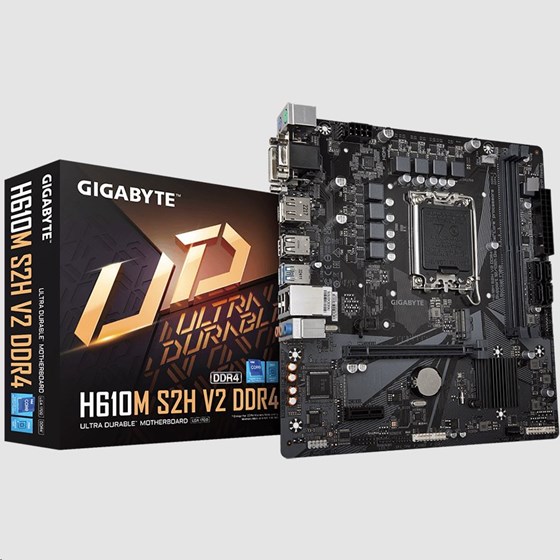

Matična Ploča Gigabyte H610M S2H V2, Intel H610, LGA 1700, mATX, DDR4

• CPU
• LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
• L3 cache varies with CPU
• Chipset
• Intel H610 Express Chipset
• Memory
• Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics
• Integrated Graphics Processor-Intel HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• Expansion Slots
• 1 x PCI Express x16 slot, running at x16
• 1 x PCI Express x1 slot
• Storage Interface
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• Audio
• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• LAN
• Realtek GbE LAN chip (1 Gbps/100 Mbps)
• USB
• Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers
